Surly MDS -takavaihtajankorvakkeet Shimano Direct Mount -takavaihtajille.
12mm Läpiakseli
Alumiinia
12mm Läpiakseli
Alumiinia
Lisätietoja

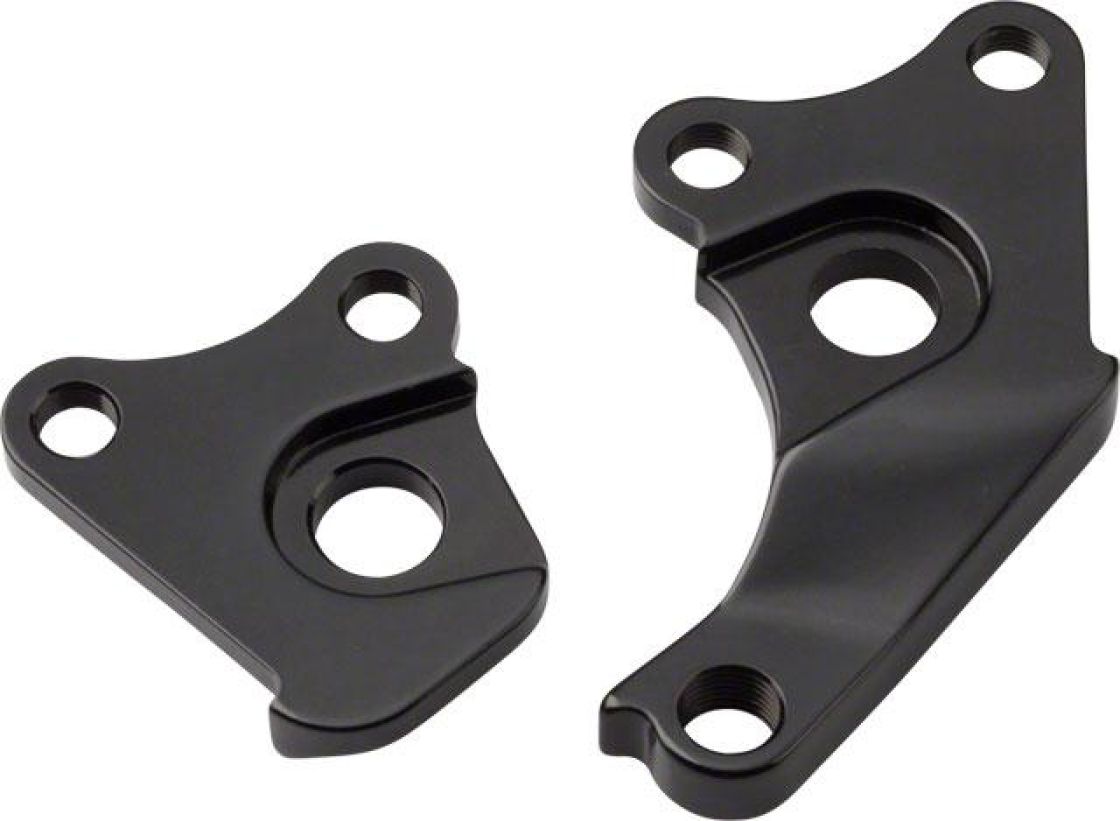

Surly MDS Dropouts chips. Made of cast and machined 6061-T6 aluminum or stainless steel, and available in multiple configurations.
12mm thru-axle
Compatible with Shimano direct mount derailleurs only
Aluminum
Shimano Direct Mount Rear Derailleurs

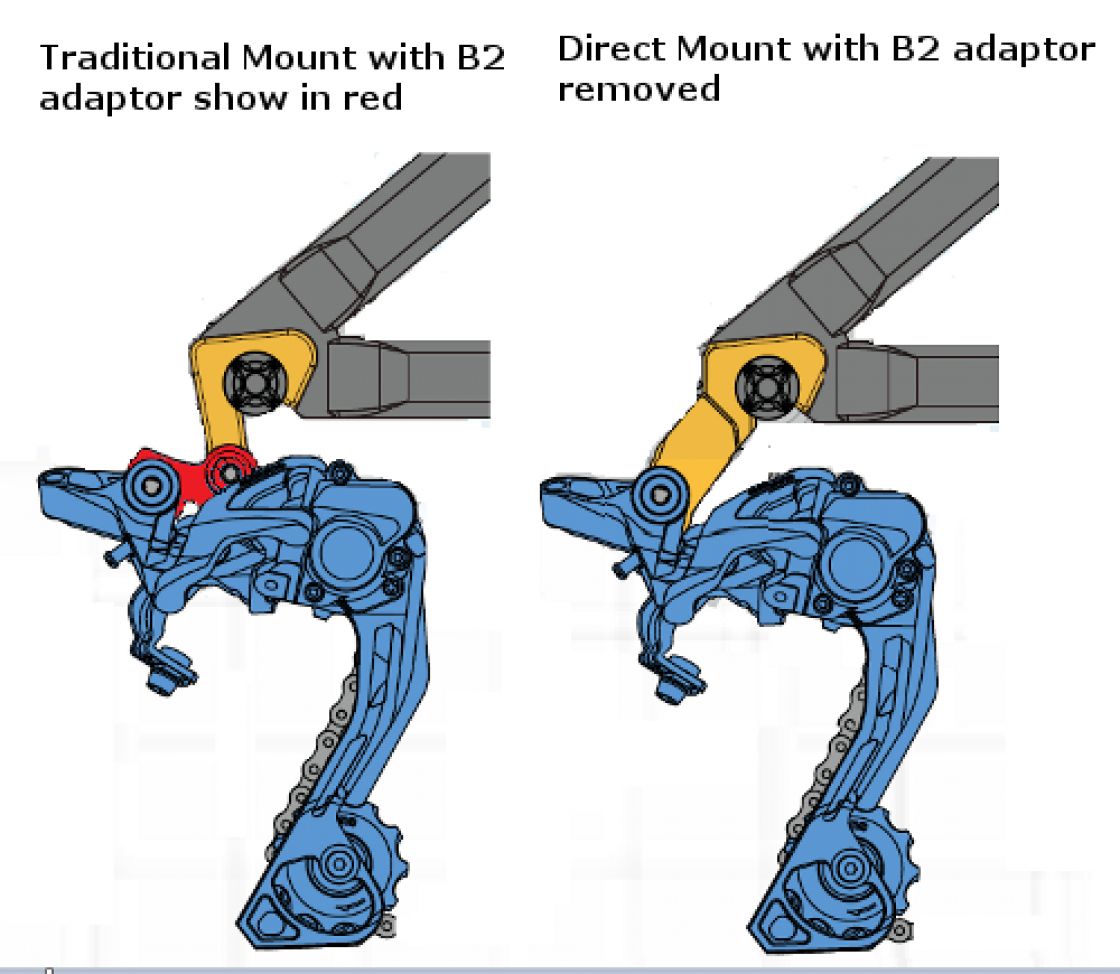

Shimano Shadow rear derailleurs can be mounted to traditional derailleur hangers and direct mount hangers. Direct Mount hangers position the mounting bolt approximately 25mm rearward. When mounting to a Direct Mount frame, remove the B2 link plate and mount the knuckle directly to the hanger with the provided 10mm bolt.
Earlier Shadow rear derailleurs are not compatible with direct mount frames. These can be identified by having a 7mm bolt that connects the derailleur to the B-link plate.
12mm thru-axle
Compatible with Shimano direct mount derailleurs only
Aluminum
Shimano Direct Mount Rear Derailleurs
Shimano Shadow rear derailleurs can be mounted to traditional derailleur hangers and direct mount hangers. Direct Mount hangers position the mounting bolt approximately 25mm rearward. When mounting to a Direct Mount frame, remove the B2 link plate and mount the knuckle directly to the hanger with the provided 10mm bolt.
Earlier Shadow rear derailleurs are not compatible with direct mount frames. These can be identified by having a 7mm bolt that connects the derailleur to the B-link plate.
