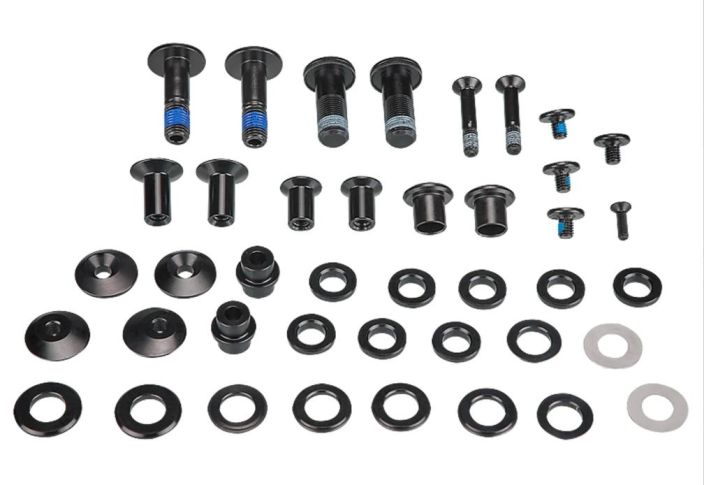

Specialized Bolt KIT, MY22 LEVO FSR (GEN.3), SUSPENSION PIVOT BOLT KIT (W/ PIVOT SPACERS)

Suspension pivot bolt kit for 2022-2025 Levo (Gen.3) bikes with all bolts and spacers
Main Pivot Driveside Bolt: Reverse Thread - 10mm W x 35mm L - Steel - Torque: 210 in-lbf (24 Nm) - 1 pcs.
Main Pivot Non-Driveside Bolt: 10mm W x 35mm L - Steel - Torque: 210 in-lbf (24 Nm) - 1 pcs.
Shock Link to Seatstay Pivot Bolt: 6mm W x 8mm L - Alloy - Torque: 71 in-lbf (8 Nm) - 2 pcs.
Shock Link to Seatstay Pivot Axle: 12mm W x 22.4mm L - Alloy - Torque: 71 in-lbf (8 Nm) - 2 pcs.
Shock Link to Shock Extension Pivot Bolt: 6mm W x 8mm L - Steel - Torque: 71 in-lbf (8 Nm) - 2 pcs.
Shock Link to Shock Extension Pivot Axle: 12mm W x 8mm L - Alloy - Torque: 71 in-lbf (8 Nm) - 2 pcs.
Shock Link to Seat Tube Pivot Bolt: 12mm W x 24mm L - Alloy - Torque: 185 in-lbf (21 Nm) - 2 pcs.
Forward Shock Eye Bolt: 8mm W x 26mm L - Steel - Torque: 90 in-lbf (10 Nm) - 1 pcs.
This kit also includes Geo Adjust Flip Chip and all Spacers. Refer to Schematic for detail.
Sold Seperately: Rear Shock Mounting Kit: S210500011 - BLT KIT, MY22 LEVO FSR (GEN.3), REAR SHOCK MOUNTING HARDWARE KIT
