frame SILEX LITE II
material: aluminium
700x45C max.WHS
100x12/142x12mm axle standard
BSA bottom bracket standard

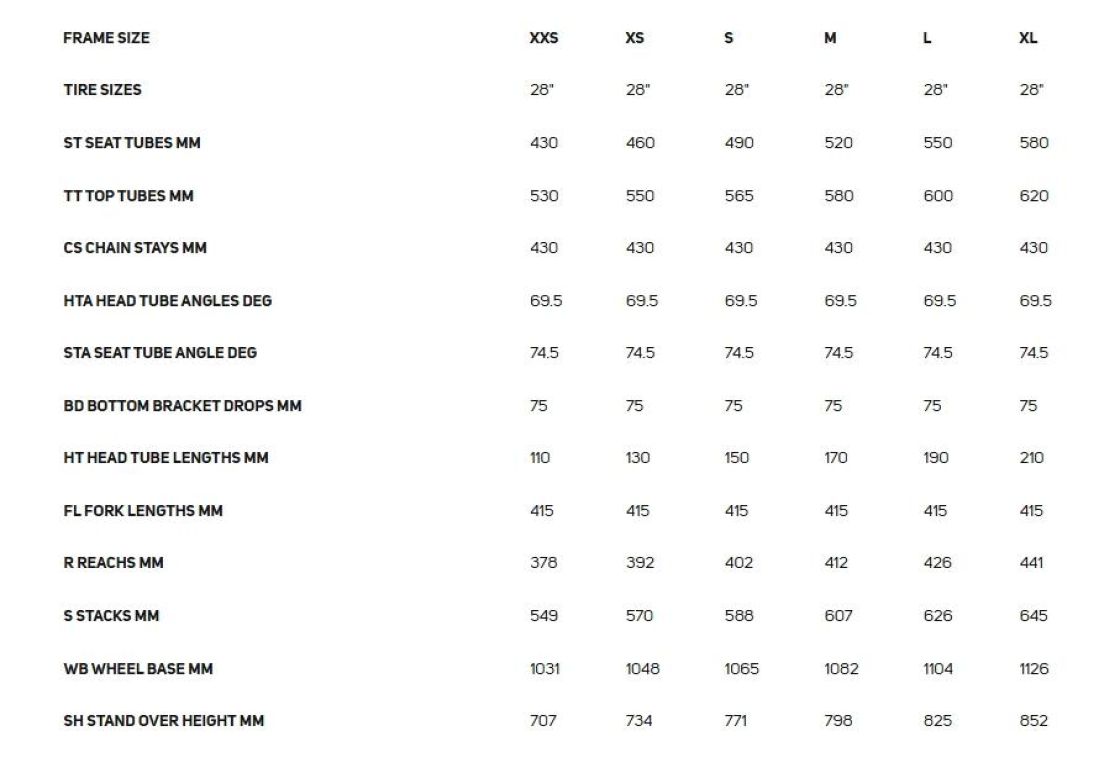

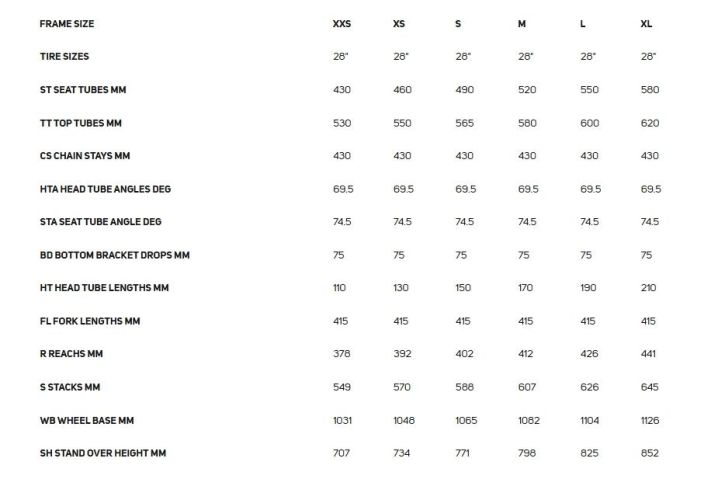

frame size XXS, XS, S, M, L, XL
color BLACK (GREY/TITAN)
fork MERIDA SILEX II CF2
Tapered
material: carbon
700x47C max. wheelsize
brake front Shimano GRX400
brake rear Shimano GRX400
rotor front Shimano RT10
180mm
rotor rear Shimano RT10
160mm
headset Acros ICR MERIDA EXTERNAL neck w/diecast splitring
handlebar MERIDA EXPERT GRII
material: aluminium
400mm (XS-S) , 420mm (M) , 440mm (L/XL)
handlebar stem MERIDA TEAM CC III
material: aluminium
31.8mm diameter
6° stem angle
80 mm all sizes
grip MERIDA ROAD Expert
derailleur (r) Shimano GRX400
derailleur (f) Shimano GRX400
seat post MERIDA COMP CC
material: aluminium
27.2mm diameter
5mm setback
saddle MERIDA COMP SL
chain KMC X10
crank Shimano GRX600
46-30 teeth
170 mm (XS/S), 172,5 mm (M), 175 mm (L/XL)
freewheel Shimano Claris HG50
11-36 teeth
10 speed
tyre front Maxxis Rambler
700x45C
fold
TR
EXO
tyre rear Maxxis Rambler
axle front MERIDA EXPERT TR
axle rear MERIDA EXPERT TR
including removable lever
6/4mm allen key
approx. weight 10,9 kg
