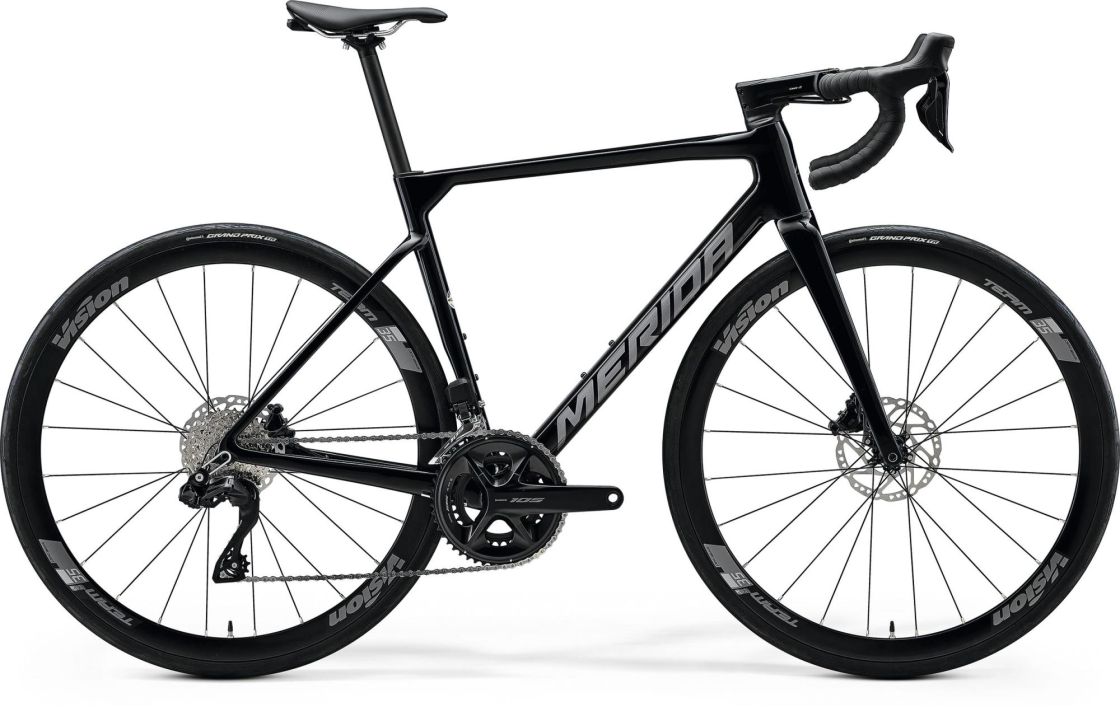

frame SCULTURA CF3 V
material: carbon
700x30C max. wheelsize
100x12/ 142x12mm axle standard
Pressfit 86,5
frame size 3XS, XXS, XS, S, M, L, XL
color METALLIC BLACK (GUNMETAL GREY)
fork MERIDA SCULTURA CF3 disc
material: carbon
700x30C max. wheelsize
brakes Shimano 105
rotors Shimano RT64
160mm
brake lever Shimano 105
headset FSA ACR NO.55R
handlebar MERIDA EXPERT SL II
material: aluminium
380mm (3S-XXS-XS-S)
400mm (M-L)
420mm (XL)
handlebar stem FSA SMR-II
material: aluminium
-10°
90 mm (3XS/XXS/XS), 100 mm (S), 110 mm (M/L), 120 mm (XL)
grip MERIDA ROAD EXPERT
derailleur (f) Shimano 105 Di2
derailleur (r) Shimano 105 Di2
shifters Shimano 105 disc Di2
seat post MERIDA EXPERT SL
27.2mm diameter
0mm setback
Carbon
seat clamp MERIDA EXPERT
saddle MERIDA EXPERT SL
6% recycled and 23% nature material
V-mount
incl. MERIDA minitool
chain Shimano M6100-12
crank Shimano 105 R7100
50-34 teeth
160 mm-3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL
freewheel Shimano 105 R7101
11-34 teeth
12 speed
bottom bracket Shimano SM-BB71-41B
Pressfit 86.5
wheelset Vision Team 35 Clincher Disc
100x12mm width front hub
142x12mm width rear hub
19mm inner width
35mm height
centerlock
material: aluminium
Tubeless ready (tubeless tape and valves not included)
tyre front Continental Grand Prix TR
700x28C
fold
tubeless ready
tyre rear Continental Grand Prix TR
700x28C
fold
tubeless ready
axles MERIDA EXPERT SL
including removable lever
6/4mm allen key
approx. weight 8.6 kg
max. weight 120 kg
