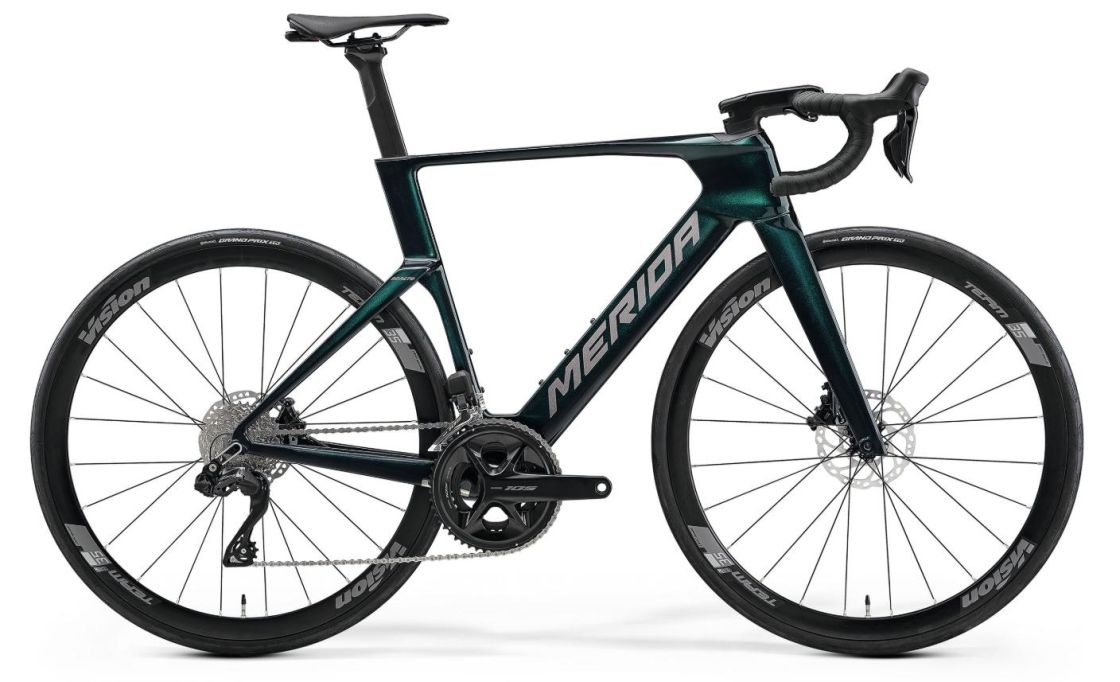

frame REACTO CF3 V
frame size 3XS, XXS, XS, S, M, L, XL
color HALO GREEN (SLATE GREY)
fork MERIDA REACTO CF3 V DISC
material: carbon
700x30C max. wheelsize
brakes Shimano 105
rotors Shimano RT64
160mm
brake lever Shimano 105
headset MERIDA TEAM SL
(RCT 608 neck)
handlebar MERIDA EXPERT CW
material: aluminium
380mm (3S-XXS-XS-S)
400mm (M-L) 420mm (XL)
handlebar stem MERIDA EXPERT SL 2PII
material: aluminium
-9° stem angle
90mm (3S/XXS/XS), 100mm (S), 110mm (M/L), 120mm (XL)
grip MERIDA ROAD EXPERT
derailleur (f) Shimano 105 Di2
derailleur (r) Shimano 105 Di2
shifters Shimano 105 disc Di2
seat post MERIDA REACTO V S-FLEX
Aero Shape
0mm setback
material: Carbon
seat clamp MERIDA REACTO V
saddle Akero RS PAS T2.0
V-mount adapter
incl. MERIDA minitool
chain Shimano M6100-12
crank Shimano 105 R7100
52-36 teeth
160 mm-3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL
freewheel Shimano 105 R7101
11-34 teeth
12 speed
bottom bracket Shimano SM-BB71-41B
Pressfit 86.5
wheelset Vision Team 35 Clincher Disc
100x12mm width front hub
142x12mm width rear hub
19mm inner width
35mm height
centerlock
material: aluminium
Tubeless ready (tubeless tape and valves not included)
tyre front Continental Grand Prix TR
700x28C
fold
tubeless ready
tyre rear Continental Grand Prix TR
700x28C
fold
tubeless ready
axles MERIDA EXPERT SL
including removable lever
6/4mm allen key
