Frame
Amflow TL Carbon Frame
Silica Beige
Full Suspension, Removable Battery, Compatible With 27.5″ and 29″ Front and Rear Wheels
Compatible With Front and Rear Mudguards
Compatible With Rear Rack and Front Rack
Compatible With Bike Trailers (Requires Trailer Thru-Axle)
Drive System

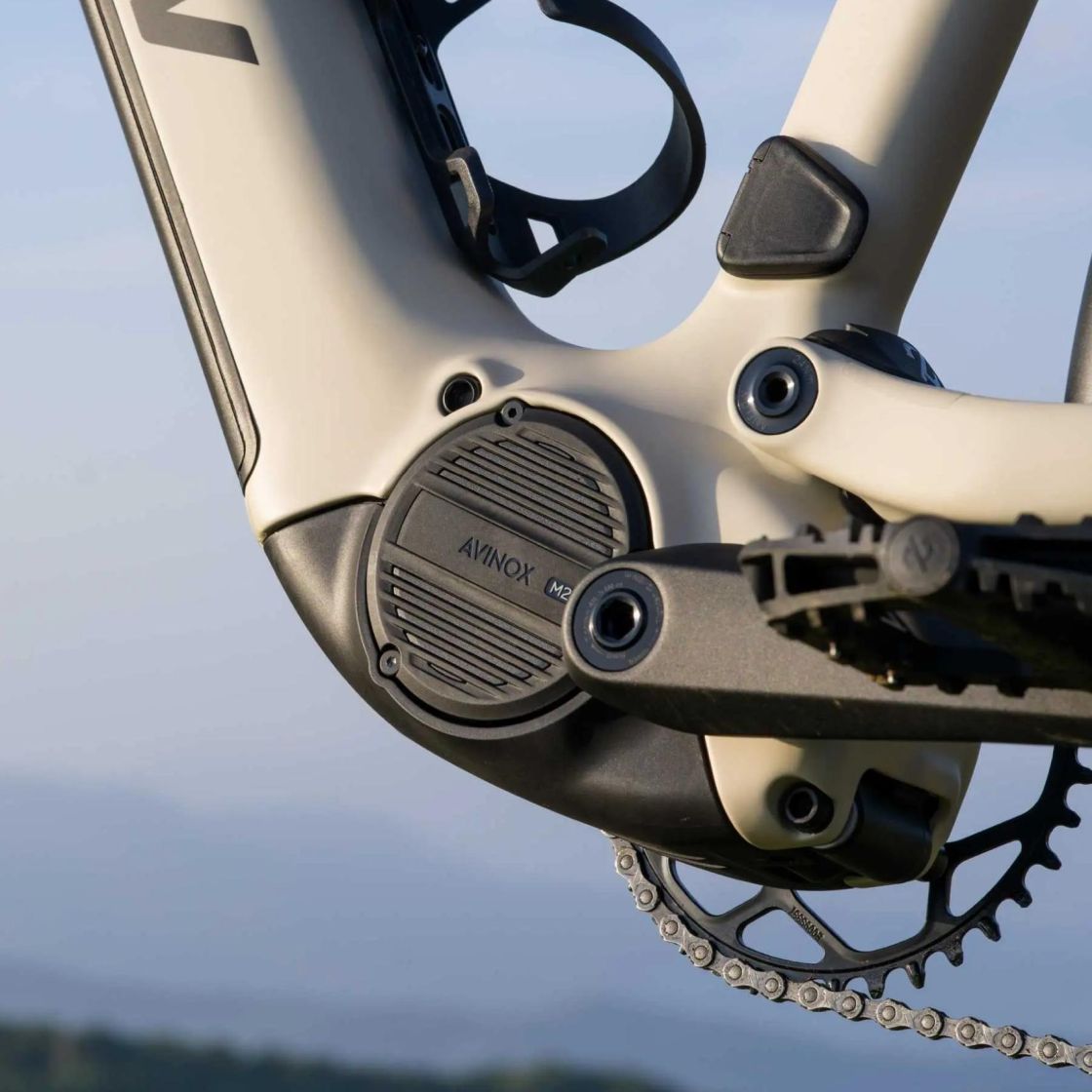

Avinox M2 Drive Unit: Nominal 110N·m, Peak 125N·m

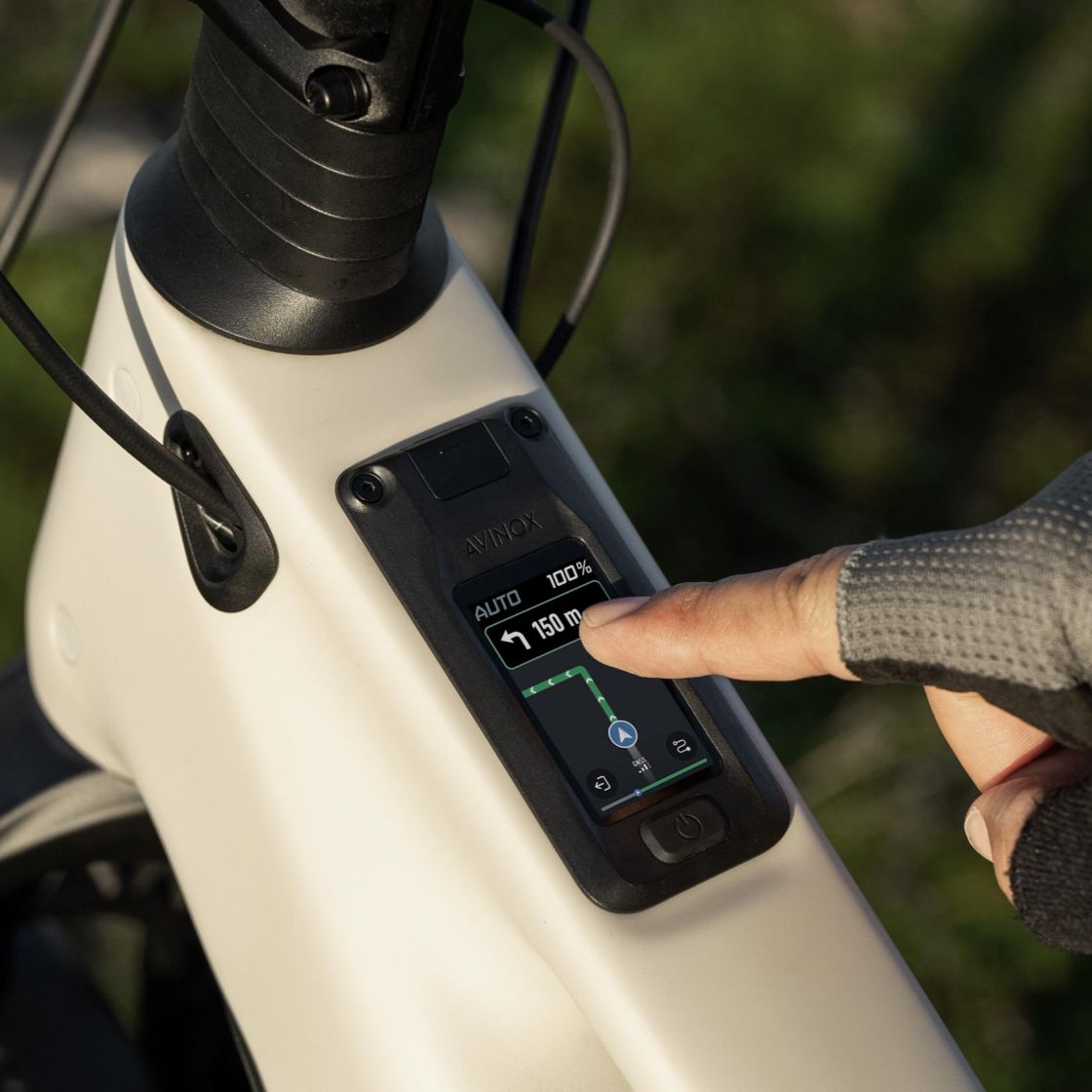

Screen: Avinox DPC100, 2-inch OLED Control Display
Battery: Avinox RS800 Battery (Removable)
Wireless Controllers: Avinox Wireless Controller × 2 (One on each side of the handlebar)
Charger: Avinox 4A Charger, 168W Output
Rear Shock
FOX FLOAT Rhythm, LSR adjustment, Amflow TL tuned, 190×45mm
Fork

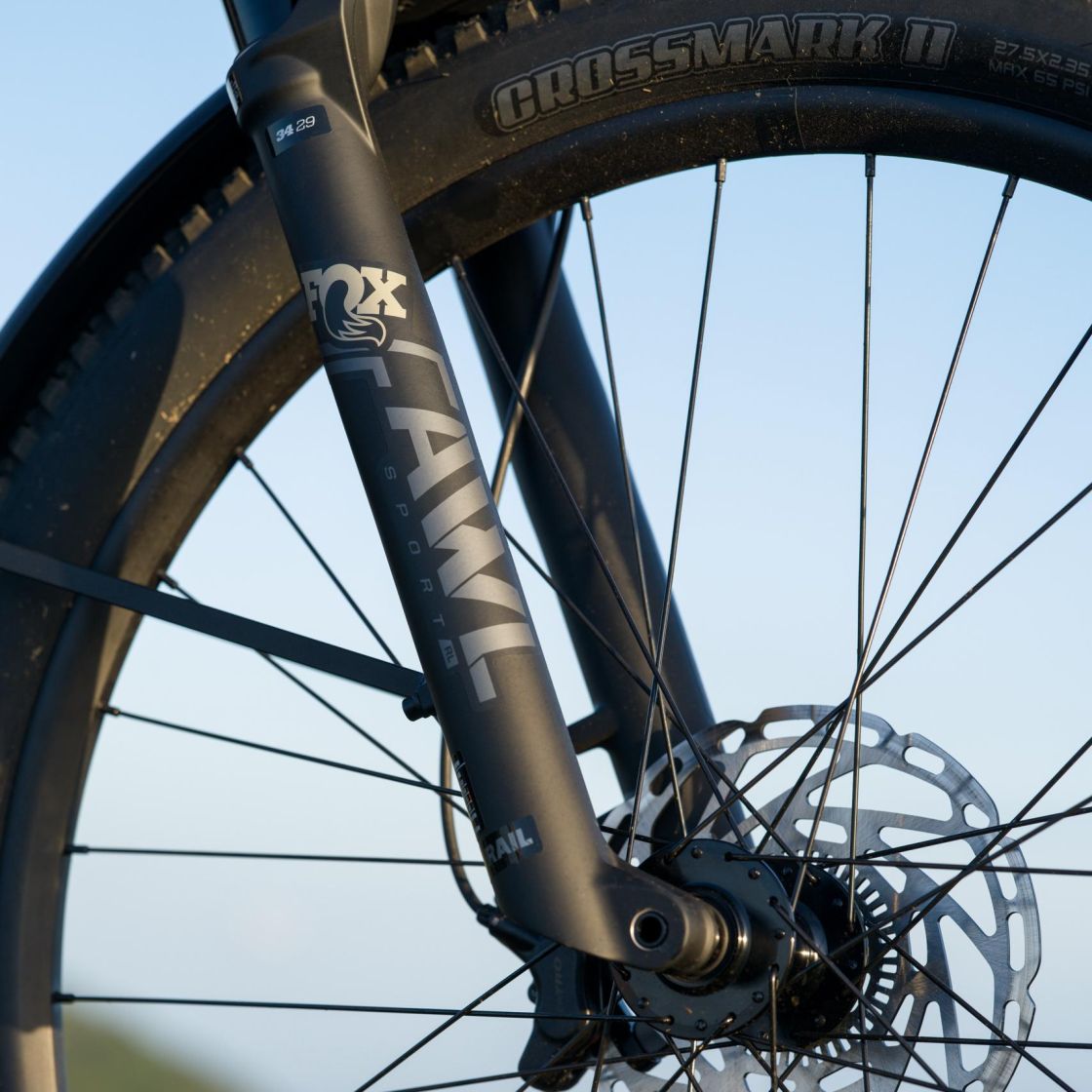

FOX AWL Sport, 120mm, RAIL 2.0 damper, LSR adjustment, 15×110mm Kabolt, 44mm offset
Drivetrain
Rear Derailleur: TRP E.A.S.I. RD-T7010E-L, 10/11-Speed, Electronic Rear Derailleur
Cassette: CS-M5243, 10-Speed, 11-43T
Chainring: Avinox Direct Mount Chainring (38T)
Chain: Avinox eGlide T Chain (10S/11S, 118 Links)
Crankset: Avinox SL Crankset (S/M: 155mm; L/XL: 160mm)
Brakes
Tektro TKD173 Hydraulic Disc Brakes, 4-Piston Caliper, Customized for Amflow
Tektro TR180-61E, Ø180mm, 2.3mm thickness, with integrated tonewheel for Avinox
Wheels
Front Wheel:
Amflow HTA-25 Front Wheel (27.5″)
Tires: Maxxis 27.5×2.35 Crossmark II Wire Bead/Clincher/EXO/60TPI
Rim: Alloy, 27.5″, 25mm Inner Width, 32H
Hub: Alloy, 15×110mm Thru-Axle, 32H, 6-bolt
Rear Wheel:
Amflow HTA-25 Rear Wheel (27.5″)
Tires: Maxxis 27.5×2.35 Crossmark II Wire Bead/Clincher/EXO/60TPI
Rim: Alloy, 27.5″, 25mm Inner Width, 32H
Hub: Alloy, 12×148mm Thru-Axle, 32H, 6-bolt, 6 Pawls, HG Freehub
Tires
Maxxis 27.5×2.35 Crossmark II Wire Bead/Clincher/EXO/60TPI
Handlebar
Amflow Touring Handlebar
S/M Size Frame: 720mm Width, 35mm Diameter, 93mm Rise
L/XL Size Frame: 740mm Width, 35mm Diameter, 93mm Rise
Grips
Amflow Enduro Grip 2
Stem
Amflow Touring Bike Split Stem (Clamping Diameter: 35mm, Length: 35mm, Angle: 0°)
Saddle
Amflow Touring Saddle
Dropper Post
Amflow TA Dropper Post, 31.6mm (Adjustable Travel: 0/-10/-20mm)
S/M Size Frame: 150mm
L/XL Size Frame: 170mm
Accessories
Avinox Front Light

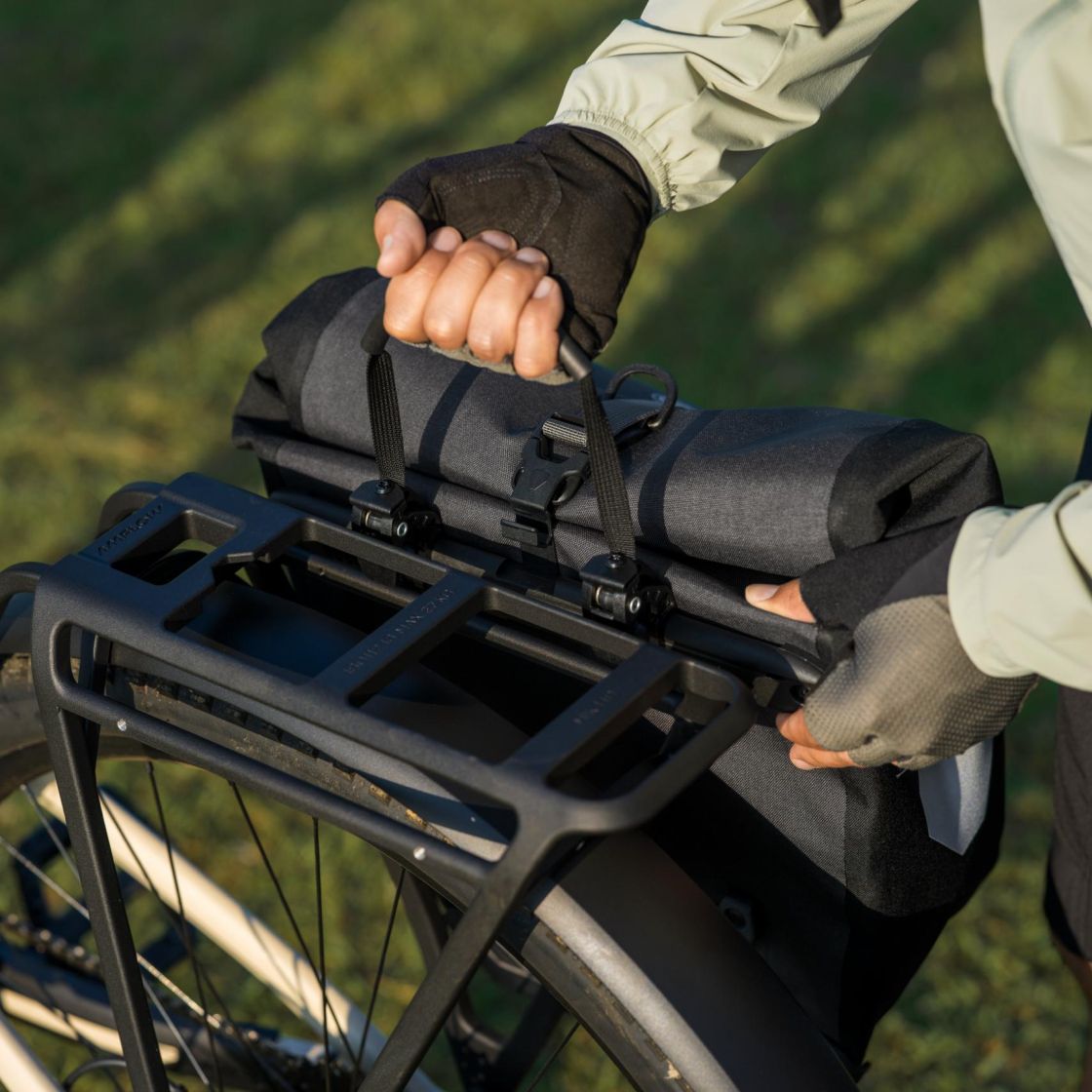

Amflow Touring Rear Rack, Compatible With MIK HD Standard
Amflow Elite MTB Pedals
Amflow Bottle Cage
Front Mudguard, Rear Mudguard
Amflow Touring Kickstand (348mm)
Amflow Touring Bike Split Stem (Clamping Diameter: 35mm, Length: 35mm, Angle: 0°)
Sate-lite M8 Rear Light With Integrated Reflector
Dropper Post Travel Reducing Spacer
Two Keys for Removable Battery
Torque Wrench
